8” Rotary Positioning Tables
Key Features
- Precision manufacturing in USA
- High accuracy and repeatability
- Lightweight, cost effective, aluminum construction
- 8” outside diameter for high rigidity
- The use of one single thin section, large diameter, preloaded roller bearing creates:
- Significant increase in rigidity, stability and stiffness
- Super low profile -- a striking 0.713’’ (VR-3153 model) -- considering the 8” diameter
- Reduced weight, inertia and cost
- Large open frame - 5.50” aperture
- Large penetrating angle - 172° (VR-3153 model)
- Worm gear drive
- Two preloaded ball bearings eliminates play on the worm shaft
- NEMA 17 flange
- Automatic and manual operation
- Motors and single axis intelligent servo controllers are available options
Specifications
| Basic Model | VR-3152 | VR-3153 (Slim) | |
|---|---|---|---|
| Total Travel | 360° Continuous | ||
| Ratio | 90 : 1 | ||
| Worm | Material | 303 Stainless Steel | |
| Pitch | 48 | ||
| Thread | Quadruple | ||
| Bearing | Preloaded Ball Bearings Assembly | ||
| Worm | Material | Bronze QQ-13-637, Alloy 464 | |
| Pitch | 48 | ||
| Thread | Quadruple | ||
| Bearing | Preloaded Cross Roller, Low Section | ||

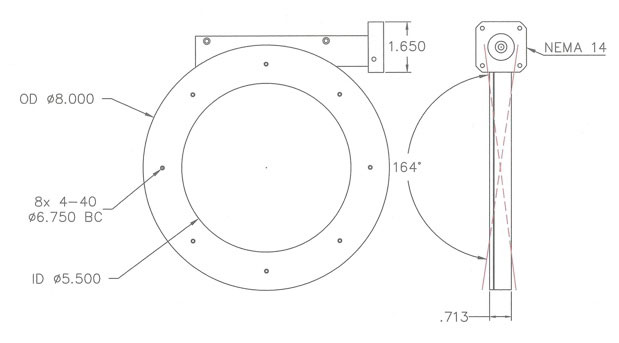

| Profile | Thickness | 1.575" | 0.713" |
| Outsize Diameter | 8.000" | ||
| Clear Aperture Diameter | 5.500" | ||
| Resolution | .003° | ||
| Accuracy | .02° | ||
| Repeatability | .002° | ||
| Roller Bearing Load Capability | Axial | 200 lbs. | |
| Radial | 100 lbs. | ||
| Maximum Speed | 240°/sec. | ||
| Body Material | Aluminum 6061 | ||
| Finish | Black Anodize | ||
| Penetrating Angle Range | From 16° to 164° | From 8° to 172° | |
